Dyna 5th Gear Install Kit For Non-Compatible Vehicles
Price range: $239.95 through $399.95
-
Custom Yota1 kits created for your convenience.
- Custom Modified 5th Gear Spline Piece
- Synchronizer Keys (3x)
- Synchronizer Key Spring (2x)
- Synchronizer Ring
The Yota1 Promise!
- Satisfaction Guaranteed
- Secure Payments
- The Best In The Business
Description
Dyna 5th Gear Install Kit For Non-Compatible Vehicles
Custom Yota1 kits created for your convenience.
The Dyna Gear comes with a hub installed that is used in the 5/94 to 1/95 Transmissions. If you are swapping the Dyna Gear Set into one of those units, nothing other than this Gear Set is required.
From 1/95 to 2/02 the hub on the counter shaft gear is removeable and must be swapped on to the new dyna gear, no other parts are needed.
From 2/02 to 9/04 the hub on the counter gear is not removeable but the slider can be reused
All parts within this kit are listed below.

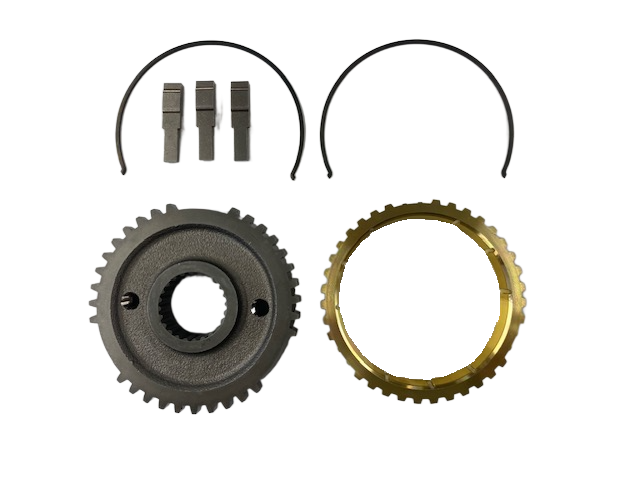

- Custom Modified 5th Gear Spline Piece (Synchro Cone)
- Synchronizer Keys (3x)
- Synchronizer Key Spring (2x)
- Synchronizer Ring
From 9/04 going forward (Mostly R155 and R151) the 5th synchro assembly switched to a 4 Notch Hub. These units will require the basic kit as well as the add on Slider in the Alternate Version of this kit.
There are 3 versions of the Dyna 5th Gear Install Kit For Non-Compatible Vehicles.
The Genuine Version of this kit comes with 1-4 as listed above.
The Aftermarket Version of this kit replaces the synchronizer ring with a more affordable aftermarket piece.

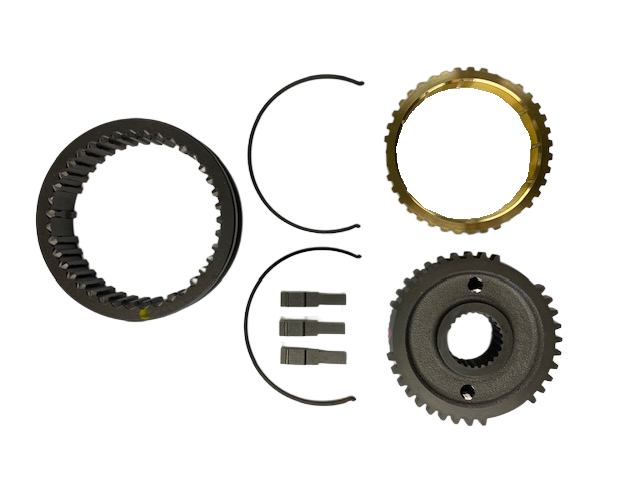

The Alternate Genuine Version of this kit comes with the genuine 1-4 parts as well as a Slider to ensure fitment on the later generation of transmissions.
Additional information
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
| Version | Genuine, Aftermarket, Genuine With Add-On Slider |
