5VZ 3.4L Early Complete Coolant Hose Kit Genuine – w/o Electronic Throttle Body

Description

5VZ Early Complete Coolant Hose Kit Genuine – w/o Electronic Throttle Body

When replacing your Engine, it’s a great idea to check all hoses for cracks, leaks and signs of ware, This is a complete hose kit that contains every coolant hose on the vehicle, all hoses and clamps are genuine Toyota parts.

PLEASE NOTE: This kit contains coolant hoses below and clamps only. It DOES NOT include any oil cooler, throttle body, vacuum, fuel, break, clutch lines or hoses.

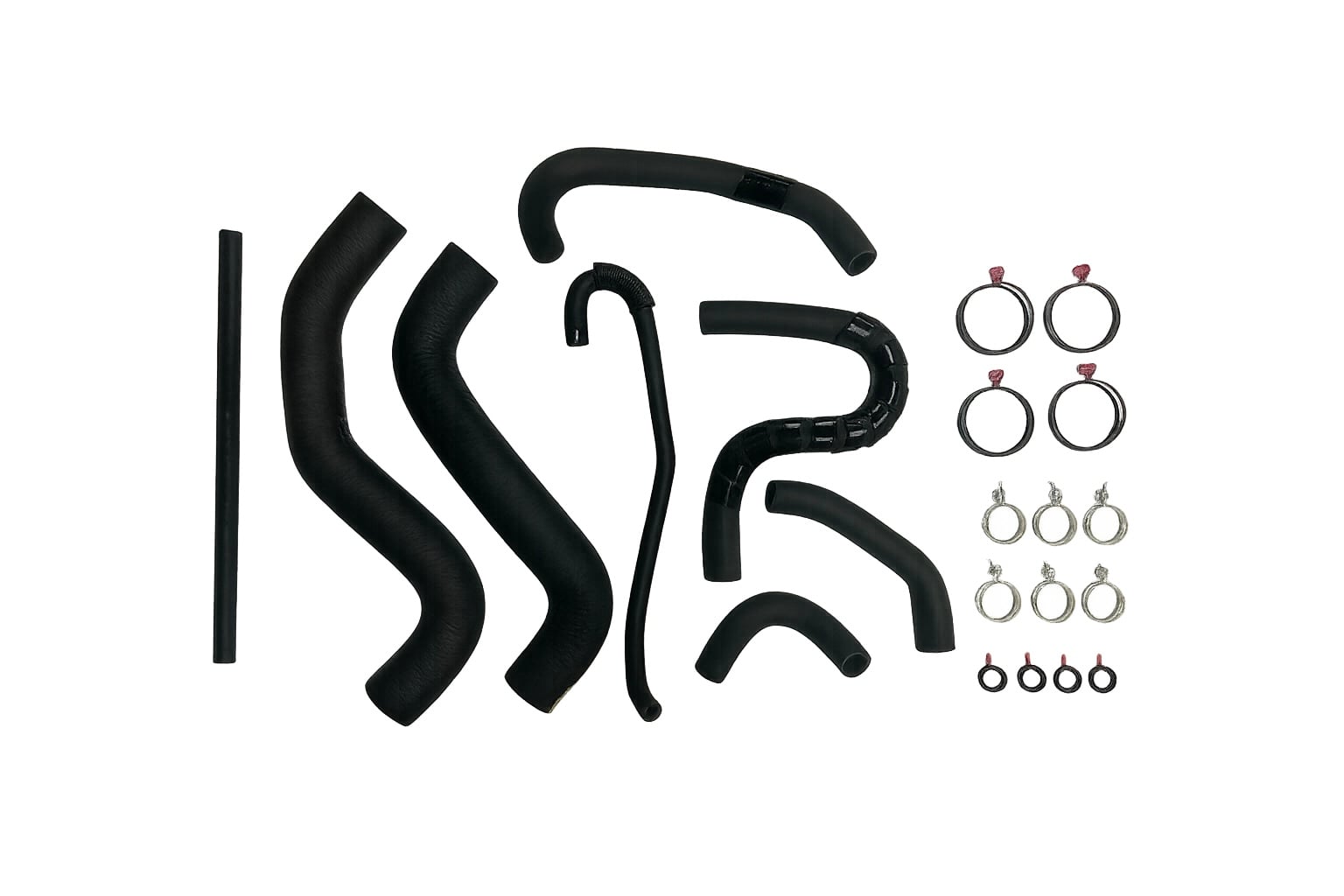

This Kit Includes:

Hose #T120772-1 Upper Radiator Hose “Inlet”

Hose #T120772-2 Lower Radiator Hose “Outlet #2”

Heater Hoses

Hose #T120772-3 Heater Hose Inlet “E” – from heater core to heater control valve

Hose #T120772-4 Heater Hose Inlet “A” – from heater control valve to nipple on rear of lower intake (this hose can be trimmed to fit and used on vehicles equipped with rear heat)

Hose #T120772-5 Heater Hose Outlet “A” – from metal pipe under lower intake manifold to heater core (this hose can be trimmed to fit and used on vehicles equipped with rear heat)

Throttle Body Hoses

Hose #T120772-6 Shorter of the two throttle body hoses – from nipple on rear right side of lower intake manifold to throttle body

Please note: We have done our very best to verify fitment, but in model years 2000 and 2001, we have noticed some variations. You will need to verify your vehicle is equipped with an electronic throttle body.
