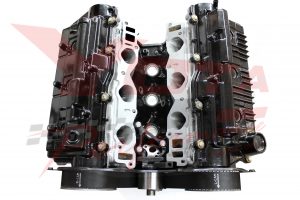

TOYOTA 5VZ 3.4L REBUILT ENGINE 1996-2004
- OEM CYLINDER HEAD, SEATS CUT, VALVES GROUND, INSTALLED HEIGHT SET LASH SET TO SPEC
- BLOCK IS BORED, HONED & DECKED
- BLOCK IS MAGNAFLUXED FOR CRACKS
- MAIN LINE IS CHECKED
- RODS ARE RESIZED WITH NEW OEM ROD BOLTS INSTALLED
- PIN BUSHINGS REPLACED AND PIN FIT
- PISTONS ARE NEW TOPLINE
- HASTINGS RINGS WITH GAP SET
- KING BEARINGS
- CAMSHAFTS POLISHED
- VALVE SPRINGS TESTED AND SEAL REPLACED
- SURFACED TO PROPER R/A FINISH
- NEW FREEZE PLUGS
- CAM PLUGSÂ (installed)
- POWDER COATED VALVE COVER (installed)
- OIL PAN AND PICK UP TUBE (installed)
- OEM AISIN OIL PUMPÂ (installed)
- OEM AISIN WATER PUMPÂ (installed)
- OEM AISIN TIMING SETÂ (installed)
- FRONT & REAR SEALS (installed)
- INCLUDES FULL JAPANESE ISHINO INSTALL GASKET SET
- CLEARANCES ARE .0015 MAINS AND RODS
- PISTONS TO BORE IS .0018 – .0020
- THRUST IS .0015 – .0020
Machining done to this engine
BLOCK WORK INCLUDES
- HOT TANKED
- TOURQE PLATE HONED
- DECKED
- BRASS FREEZE PLUGS
- ALL OIL AND WATER PLUGS ARE NEW
ROD WORK INCLUDES
- STUDS PRESSED OUT
- ROD AND CAP GET CUT
- BIG END IS RESIZED
- PIN BUSHINGS REPLACED AND HONED TO THE EXACT PIN
CRANK WORK INCLUDES
- CRANKSHAFT IS GROUND AND POLISHED
- ALL 4 PLUGS REPLACED
- OIL CLEARANCE IS .0013
